When you place an elevation tag, move the cursor near the desired wall and you will see the elevation marker rotate to be perpendicular with the wall so that you get a scope box that is parallel. you can go ahead and place the marker, and then move the marker to a new location that is further from the wall if desired. Place the cursor near bathroom walls interior revit elevations a wall, and click to place the elevation symbol. note:as you move the cursor, you can press tabto change the position of the arrowhead. the arrowhead snaps to perpendicular walls. to set different interior elevation views, highlight the square shape of the elevation symbol, and click.
How To Create Bathroom Floor And Wall Tiles In Revit
There are a couple of good options to make the elevation parallel to the wall. option 1 when the tag is placed. when you place an elevation tag, move the cursor near the desired wall and you will see the elevation marker rotate to be perpendicular with the wall so that you get a scope box that is parallel.
Oct 19, 2018 explore joanne hope's board "bathroom elevations" on pinterest. see more ideas about elevation drawing, interior design drawings, design. You can create additional exterior elevation views and interior elevation views. interior elevation views depict detailed views of interior walls and show how the features of the wall should be built. examples of rooms that might be shown in an interior elevation are kitchens and bathrooms. Modeling groutlines is over modeling another cardinal sin in the revit world. the curvy tile pattern from your last photo cannot be modeled as a curtain wall. you will need to show information about it in detail drawings created as drafting views with detail lines. and no revit or no revit you do not want to model that with 3d geometry. Download this cad drawing of a bathroom design in plan and elevations including floor tiles wall tiles and bathroom fixture cad blocks. share / sell your own cad models including; solidworks models revit families inventor models catia models vectorworks drawings and more.

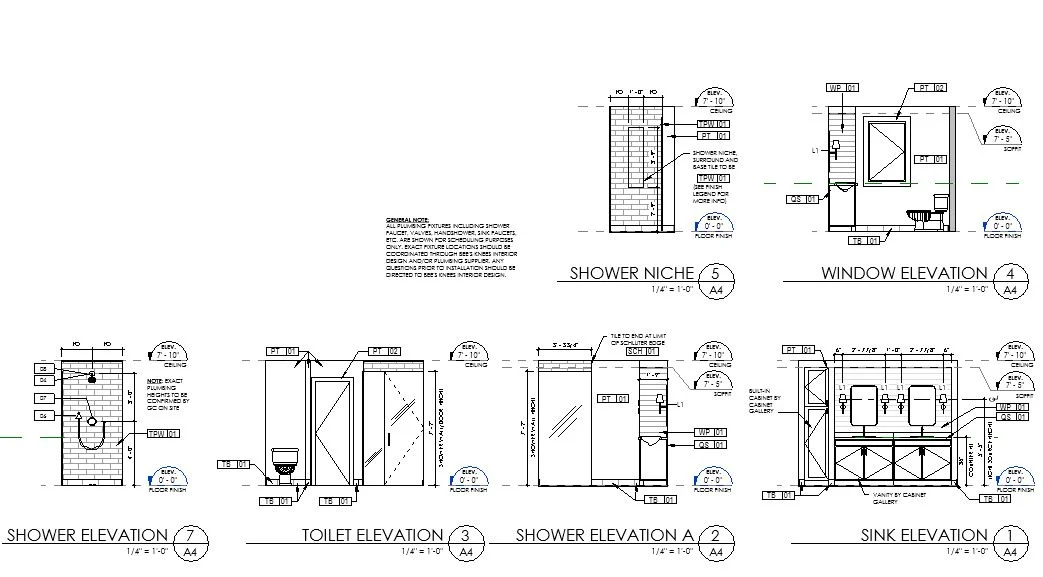

A customer wanted to show bathroom fittings that are behind a wall in elevation so that they can plan the drainage piping for each fitting. the revit tool you would use to show the fittings behind the wall is on the view tab -> graphics panel and the tools are show hidden lines and then the opposite remove hidden lines. Get this project file as well as all of my revit bathroom walls interior revit elevations files: www. patreon. com/balkanarchitectother bathroom interior design tutorial: www. youtube. c. The technique taught in this guide aims to provide a consistent strategy that can be used in plan views, elevations and even 3d views. good luck. 1model additional thin floors and walls. create a new wall and floor type with a thickness of about 12mm (1/2”). call these elements int-finish floor and int-finish wall. [brian] to create interior elevations of your plan,…first go to the floor plan view…where you would like those interior elevations to show up.in this case, let's go to our floor plan's first floor,…then zoom into our kitchen and our master bathroom area.we can find our elevation symbols underneath…the view tab and your icon might be a little bit larger…than mine based off of.
Watch full course: www. pluralsight. com/courses/revit-time-saving-workflows-preparing-project-submittalsin this video from pluralsight’s “time-saving. Use elevation views to look at a project from different locations, either exterior or interior. open a plan view. click view tabcreate panelelevation drop-down (elevation). the cursor appears with the elevation symbol. (optional) in the type selector, select a view type from the list, or click edit type to modify an existing view type or create a new view type. place the cursor near a wall. To create four new internal elevation views of the kitchen appliances, go to the view tab and select elevation. when you hover over your room, a revit elevation marker will be displayed on the end of your cursor. notice how the arrow on the marker always points to the nearest wall. revit is trying to deduce what you need an elevation bathroom walls interior revit elevations of. One thing to note is that when revit creates these internal room elevations, it automatically crops the elevation views horizontally and vertically by means of the walls, floors and ceilings (assuming you have all these elements in the model). we can see the horizontal cropping effect by selecting one of the black elevation view arrows.
Elevation views gtu.
One thing to note is that when revit creates these internal room elevations, it automatically crops the elevation views horizontally and vertically by bathroom walls interior revit elevations means of the walls, floors and ceilings (assuming you have all these elements in the model) we can see the horizontal cropping effect by selecting one of the black elevation view arrows…. See more videos for interior elevations bathroom walls revit.
You have the interior wall ends attached to the exterior face of the exterior walls and you are seeing the end of the interior wall on the same face. b. if the interior wall ends where showing as dashed lines then it could be someone used the show hidden lines tool on the toolbar to display the end of the wall as hidden lines through the. The arrowhead snaps to perpendicular walls. to set different interior elevation views, highlight the square shape of the elevation symbol, and click. the elevation symbol displays with check box options for creating views, as the following image shows. tip:the rotation control is bathroom walls interior revit elevations useful for aligning to angled elements in the plan. I would like to create an elevation tag for my unit bathrooms and kitchens that group 2 or more elevations on the same detail number within the circle tag and have sub detail numbers (or letters) for each elevation outside of the tag. for example, if i need to elevate three walls of my bathroom, i would have elevations a, b and c, detail number 1, sheet number a-202 is this possible?. When you hover over your room, a revit elevation marker will be displayed on the end of your cursor. notice how the arrow on the marker always points to the nearest wall. revit is trying to deduce what you need an elevation of. click in the centre of the room to place the elevation marker into your view. the marker has a single, black arrow tip.
